Specialty

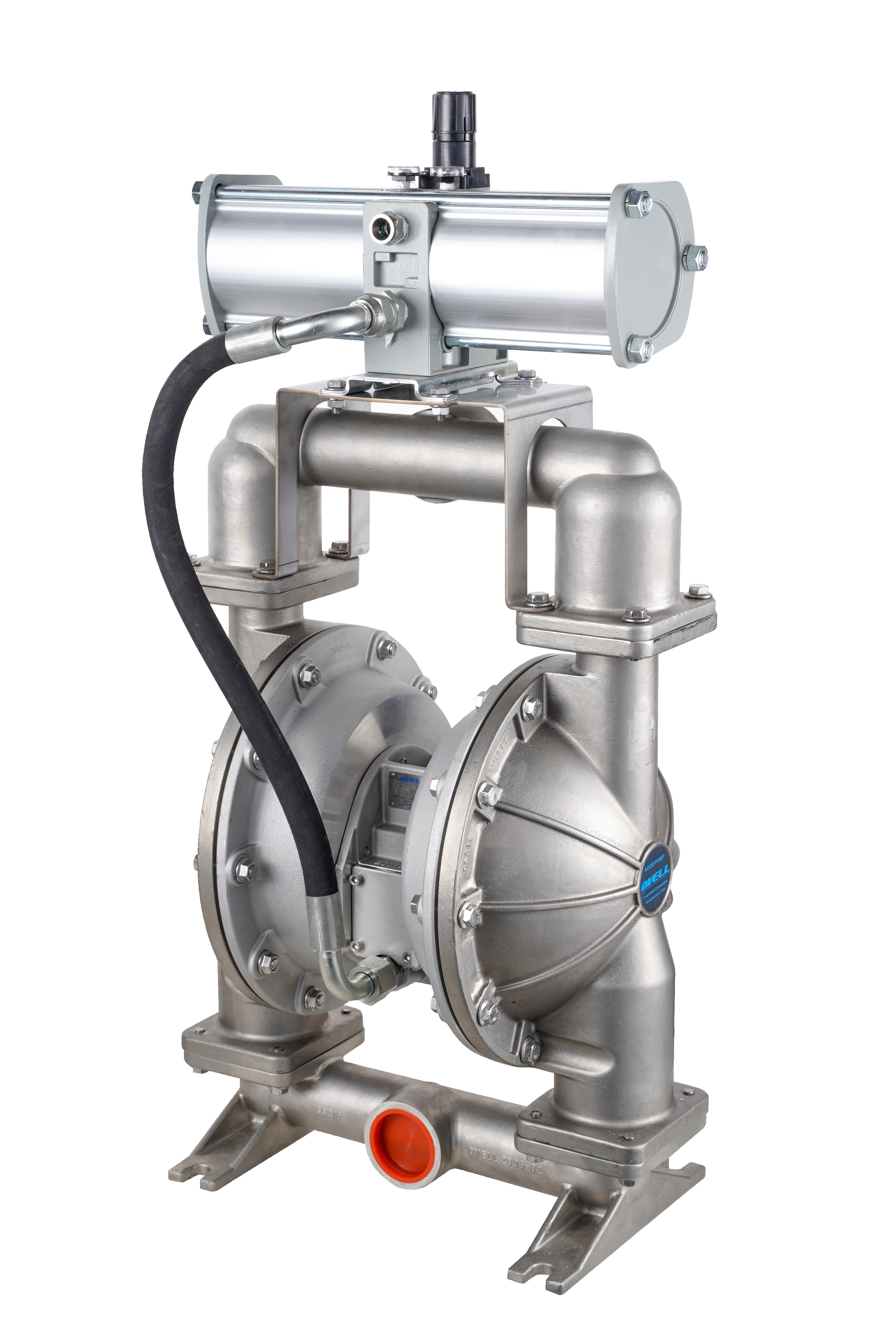

Booster Diaphragm Pump

  • The booster multiplier is infinitely adjustable (1-2 times), no need to deliberately control the air source pressure.

  • The pressure value is displayed on the dial, which can monitor and stabilize the output pressure value in real time.

  • Simple installation, convenient and easy to use, this product easy to move, ready to use without debugging.

  • Good sealing, no leakage of materials in the whole process,avoid contact between personnel and materials.

  • Slight agitation to avoid material heating,There is no spark and no heat generated during operation.

  • The shearing force is small and the maximum is kept Integrity and initial state of the material.

  • The optimized diaphragm and ball valve have reliable performance,longer life.

  • Economical and practical, under normal circumstances, the cost only one tenth of the traditional equipment, and maintenance is simple.


Specification



Max.Working Pressure

(Bar)

Max.Lift

(m)

Max.Flow Rate

(L/Min)

Max.Particle Diameter

(mm)

Weight

(kg)

Common Model
2” 14 140 680 6.5 65 ZA20SAXXX
3” 14 140 902 10 115 ZA30SAXXX
