AIR INLET：1/4" FNPT
LIQUID INLET：6.5 mm (1/4" )
LIQUID DISCHARGE：6.5 mm (1/4" )
CONNECTION TYPE：BSPT
MAX SUCTION LIFT CAPABILITY：2.5m (Dry）
MAX FLOW RATE：20 lpm (5.28gpm)
MAX PRESSURE：8.6 bar
MAX DIAMETER SOLIDS：1.6 mm
Plastic Diaphragm Pump

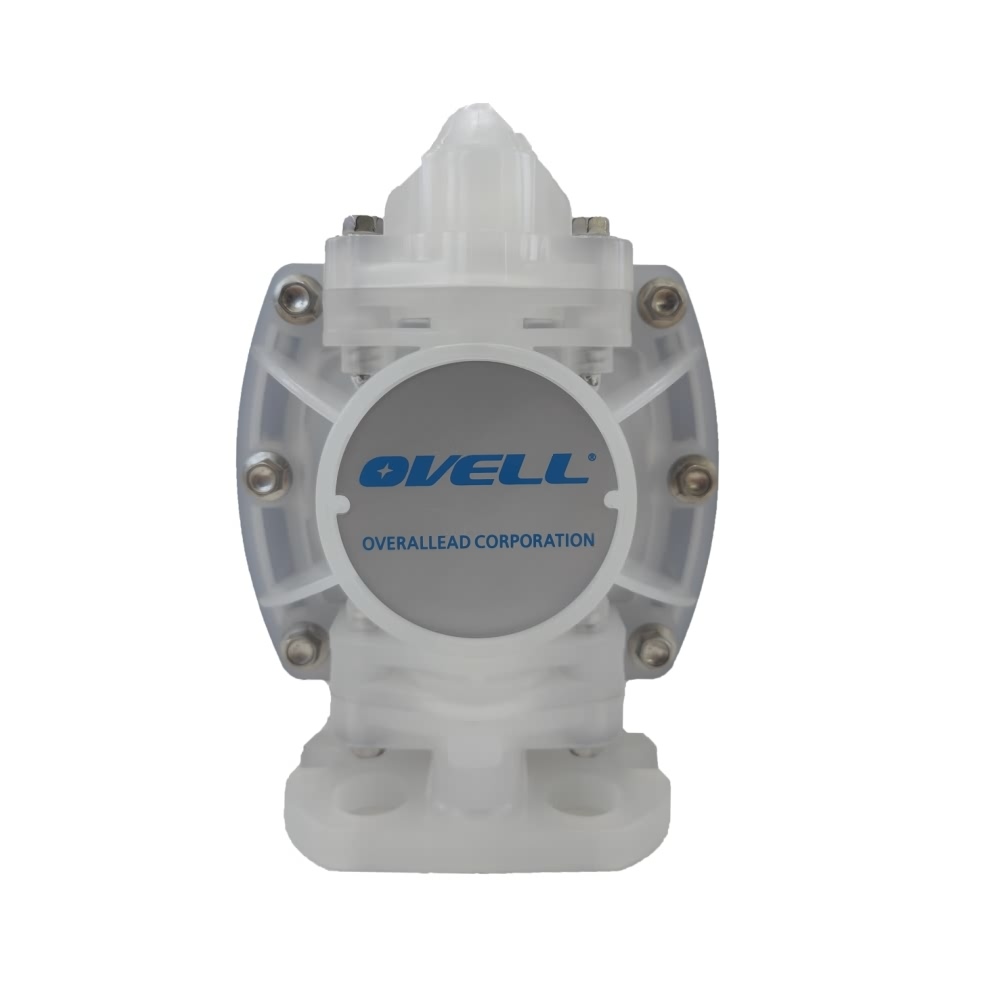

6.5 mm (1/4" ) Plastic Air Operated Diaphragm Pump
