Specification
|
Max.Working Pressure
（Bar） |
Max.Flow Rate
（L/Min） |
Max.Particle Diameter
（mm） |
Weight
（kg） |
Common Model |
| 1-1/2” | 8.3 | 480 | 25 | 30 | FA15AAXXX |
| 2” | 8.3 | 680 | 38 | 40 | FA20AAXXX |
| 3” | 8.3 | 902 | 50 | 62 | FA30AAXXX |

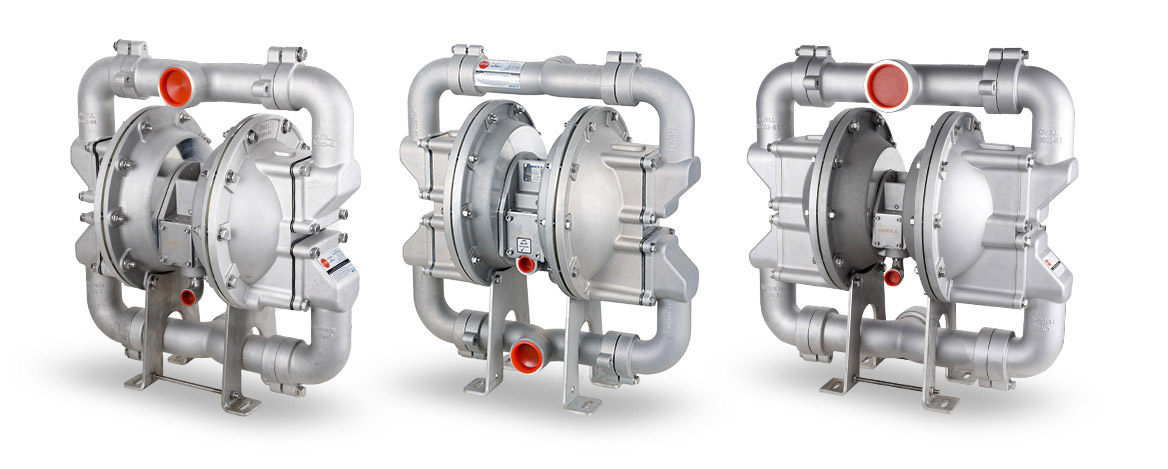

Flap Valve Diaphragm Pump
Flap Valve Diaphragm Pump
The fluid is pumped in from the top and out from the bottom, and the fluid can be drained and exhausted.
Theoretical maximum allowable particle diameter is up to 50mm.
The shear force is small, and the integrity and initial state of the material are kept to the greatest extent.
Micro agitation avoids material heating, no electric sparks, and no heat generation.
Good sealing, no leakage of materials in the whole process, avoiding contact between personnel and materials.
Economical and practical, the cost is only one tenth of the traditional equipment, and the maintenance is simple.
Simple installation, convenient and easy to use.
