Specification
|
Max.Working Pressure
（Bar） |
Max.Dry Suction
（m） |
Max.Flow Rate
（L/Min） |
Max.Particle Diameter
（mm） |
Connector Measure
（kg） |
Common Model |
| 1” | 4.5 | 6 | 4.6 | 3.2 | 25mm(1"BSPT) | E10XAXXX |
| 1-1/2” | 4.5 | 5.8 | 10 | 6.5 | 38mm(1-1/2"BSPT) | E15XAXXX |
| 2” | 4.5 | 7 | 16 | 6.5 | 51mm(2"BSPT) | E20XAXXX |
| 3” | 4.5 | 5.4 | 30 | 10 | 76mm（3"BSPT) | E30XAXXX |

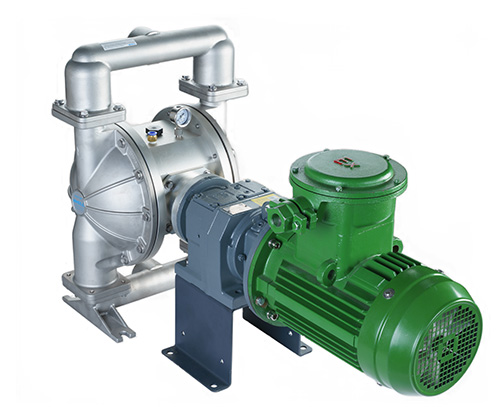

Electric Diaphragm Pump
Electric Diaphragm Pump
Back pressure shutdown and leakage alarm devices can be installed
Unique back pressure protection design extends the life of the diaphragm
No additional pulsation dampers are required to reduce pulsation
Can be rotated dry
Self-priming (operates without manual priming pump)
Compared with traditional pneumatic diaphragm pumps, the efficient and energy-saving electric drive mode can reduce energy consumption by up to 70%
